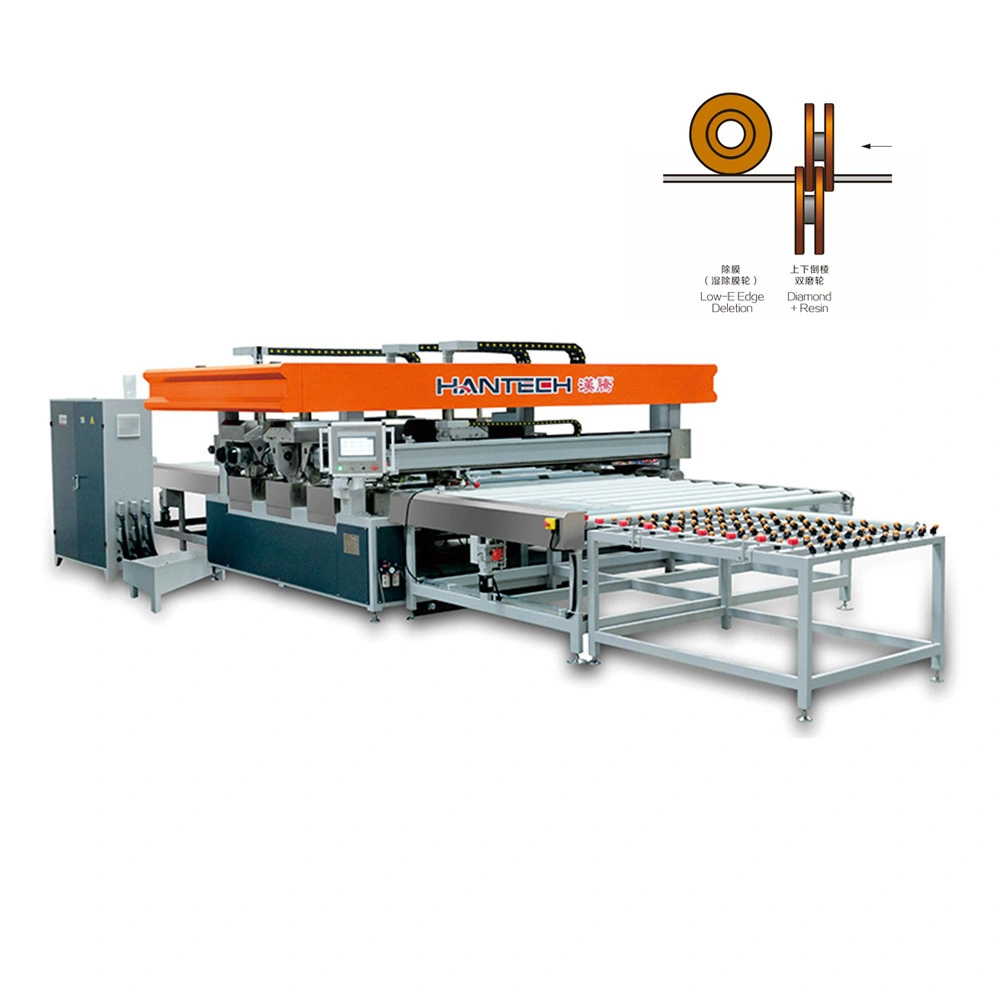

Glass Grinding Machine FB-Series Arrising + Low-E Edge Deletion
The Glass Grinding Machine FB - Series Arrising + Low - E Edge Deletion model focuses on "energy - saving and precise trimming". It is equipped with a PM motor, which is highly energy - efficient and can help you save a significant amount on electricity bills. This machine can finely grind small - sized glass, meeting high - precision requirements. When processing Low - E glass, it can accurately cut off the excess film layers at the edges, ensuring both excellent edge - deletion effects and no damage to the glass. It provides you with an energy - saving and precise Low - E glass processing solution.
ميزات الماكينة
● اعتماد محرك PM، الذي يتميز بالكفاءة العالية، وانخفاض استهلاك الطاقة وأداء التحكم الأفضل.
● يمكن معالجة أحجام الزجاج الأصغر لتلبية احتياجات المعالجة الدقيقة بشكل أفضل.
제품 매개변수
| 모델 번호 | HSZM16FB | HSZM20FB | HSZM25FB |
| 휠 구성 | 4개의 연삭 헤드(각각 상부용 레진 휠 4개 포함) & 하단 + 1 Low-E 엣지 삭제 휠) | ||
| 크기 범위 | 160*380~1600*2500mm | 160*380~2000*3000mm | 160*380~2500*3000mm |
| 두께 범위 | 4-12mm(표준 4-8mm, 옵션 6-12mm) | ||
| 속도 | 12-40m/분 도착 | ||
| 용량 | 6개/분(예: 4*1000*1000mm) | ||
| 작업 높이 | 900~960mm | ||
| 기계 크기(L*W*H) | 6050x3500x2150mm | 6800x3900x2150mm | 6800x3900x2150mm |
| 무게 | 3.8티 | 4.3티 | 4.8티 |
| 힘 | 27kw, 3상 4선, 380V/50Hz | ||
