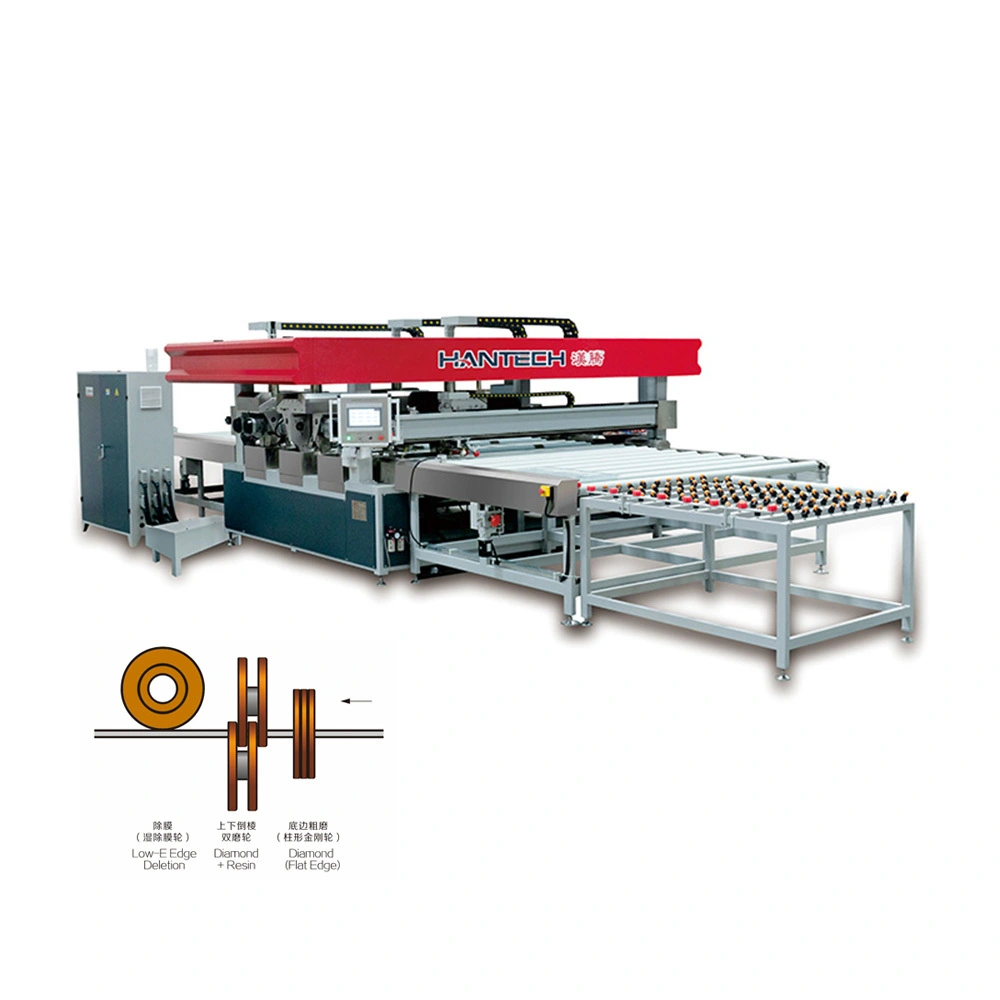

Glass Grinding Machine EA Series-3-in-1 Arrising + Flat Edge Grinding + Low-E Edge Deletion
Ruisheng EA series glass edge grinding machine integrates the functions of flat edge grinding and Low-E edge removal to achieve "multiple and stable effects". In the past, it required multiple steps, but now it can be completed in one step. It can efficiently handle the edge grinding of door and window glass and the film removal of Low-E glass, saving a lot of time. Its double compensation Low-E film removal system can be intelligently adjusted according to the glass thickness and processing speed, with precise film removal and stable effect. It provides an efficient solution for Low-E glass processing and opens up a new path for diversified processing.
Vlastnosti stroje
● Multi-functional integration to meet multiple edging requirements at one time.
● Double-compensated Low-E Deletion system for thickness and speed ensures a stable film removal effect.
Produktparameter
| Modell Nr | HSZM16EA | HSZM20EA | HSZM25EA |
| Radkonfiguration | 4 Grinding Heads, Each has: 4 Wheels for Upper & Lower Arrising (Diamond Wheel + Resin Wheel)+1 Diamond Wheel for Flat Edge (3 layers)+ 1 Low-E Edge Deletion | ||
| Größenbereich | 270*650~1600*2500mm | 270*650~2000*3000mm | 270*650~2500*3000mm |
| Dickenbereich | 4–12 mm (Standard 4–8 mm, Option 6–12 mm) | ||
| Geschwindigkeit | Ankunft 12-40 m/min | ||
| Kapazität | 6 Stück/min (zB 4 x 1000 x 1000 mm) | ||
| Arbeitshöhe | 900~960 mm | ||
| Maschinengröße (L*B*H) | 6650x3500x2150mm | 7250x3900x2150mm | 7250x4400x2150mm |
| Gewicht | 3.8T | 4.5T | 5.0T |
| Leistung | 33kw，3-phase 4-wire,380V/50Hz | ||
